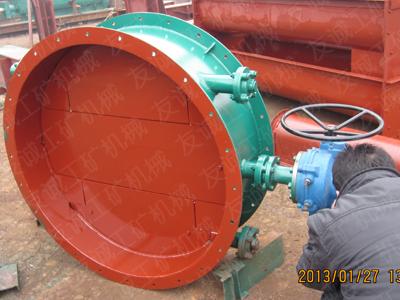

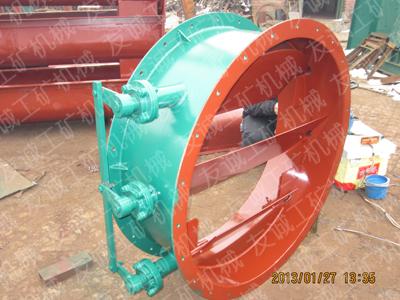

百葉電動通風蝶閥產品介紹
概述：
電動百葉閥廣泛應用于建材、冶金、礦山、電力等生產行業中，專門用來控制調節管路中的流量。
特點：
百葉、多軸液體均勻，啟閉力矩小，動作靈敏，性能可靠。
工作原理：
電液推桿通過曲柄、連桿帶動各百葉軸，使百葉板同步旋轉到調節目的。
百葉電動通風蝶閥技術參數：
|
DN
|
D1
|
D
|
L
|
L1
|
L2
|
L3
|
L4
|
H
|
b
|
n-d
|
軸數
|
電液推桿型號
|
電機功率（ＫＷ）
|
|
500
|
600
|
645
|
220
|
360
|
420
|
560
|
340
|
1457
|
14
|
20-φ22
|
3
|
DYT-700I
|
0.75
|
|
600
|
705
|
775
|
220
|
360
|
490
|
630
|
380
|
1557
|
14
|
20-φ26
|
3
|
||
|
700
|
810
|
875
|
240
|
380
|
540
|
680
|
430
|
1634
|
16
|
24-φ26
|
3
|
||
|
800
|
920
|
975
|
240
|
380
|
600
|
740
|
500
|
1725
|
16
|
24-φ30
|
3
|
||
|
900
|
1020
|
1075
|
260
|
400
|
650
|
790
|
550
|
1807
|
16
|
24-φ30
|
3
|
||
|
1000
|
1120
|
1175
|
260
|
400
|
700
|
840
|
600
|
1892
|
16
|
28-φ30
|
3
|
||
|
1100
|
1220
|
1275
|
280
|
420
|
750
|
890
|
660
|
2020
|
18
|
28-φ30
|
4
|
DYT-10000I
|
1.1
|
|
1200
|
1320
|
1375
|
280
|
420
|
815
|
955
|
725
|
2180
|
18
|
32-φ30
|
4
|
||
|
1400
|
1520
|
1574
|
300
|
440
|
900
|
1040
|
800
|
2282
|
18
|
36-φ30
|
4
|
||
|
1600
|
1730
|
1790
|
320
|
460
|
1000
|
1140
|
900
|
2505
|
20
|
40-φ30
|
4
|
||
|
1800
|
1930
|
1990
|
340
|
500
|
1120
|
1280
|
1000
|
2760
|
22
|
44-φ30
|
4
|
DYT-14000I
|
2.2
|
|
2000
|
2130
|
2190
|
360
|
520
|
1220
|
1380
|
1100
|
2935
|
22
|
48-φ30
|
4
|
||
|
2200
|
2340
|
2405
|
380
|
550
|
1330
|
1490
|
1230
|
3037
|
22
|
52-φ33
|
4
|
DYT-21000I
|
3
|
|
2500
|
2640
|
2705
|
420
|
570
|
1475
|
1635
|
1355
|
3492
|
24
|
56-φ33
|
5
|
||
|
2800
|
2960
|
3030
|
440
|
590
|
1635
|
1795
|
1505
|
3675
|
26
|
64-φ36
|
5
|
||
|
3000
|
3160
|
3230
|
460
|
610
|
1735
|
1895
|
1605
|
3955
|
26
|
68-φ36
|
5
|
